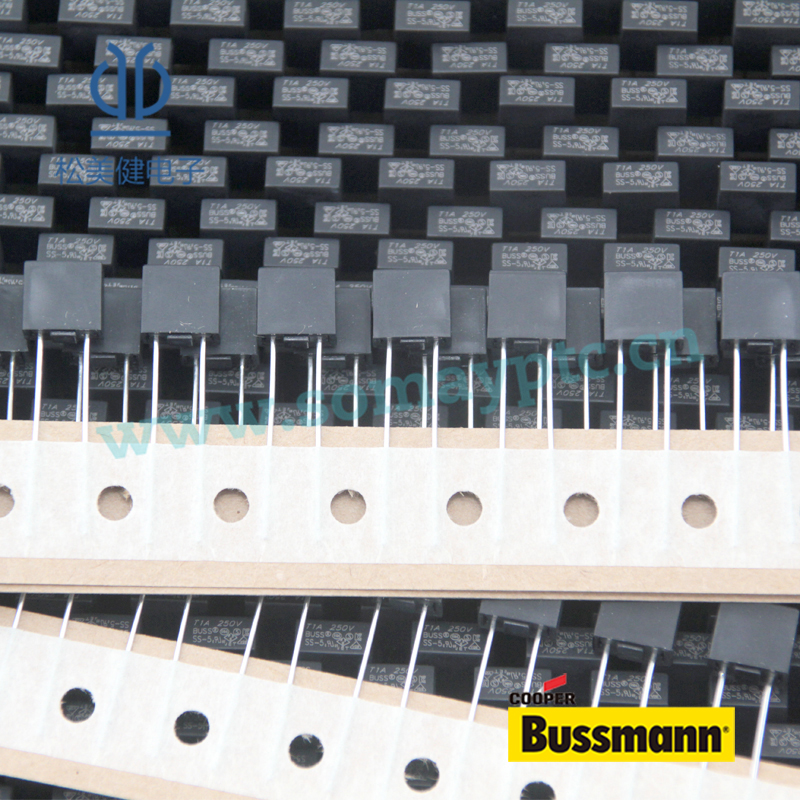

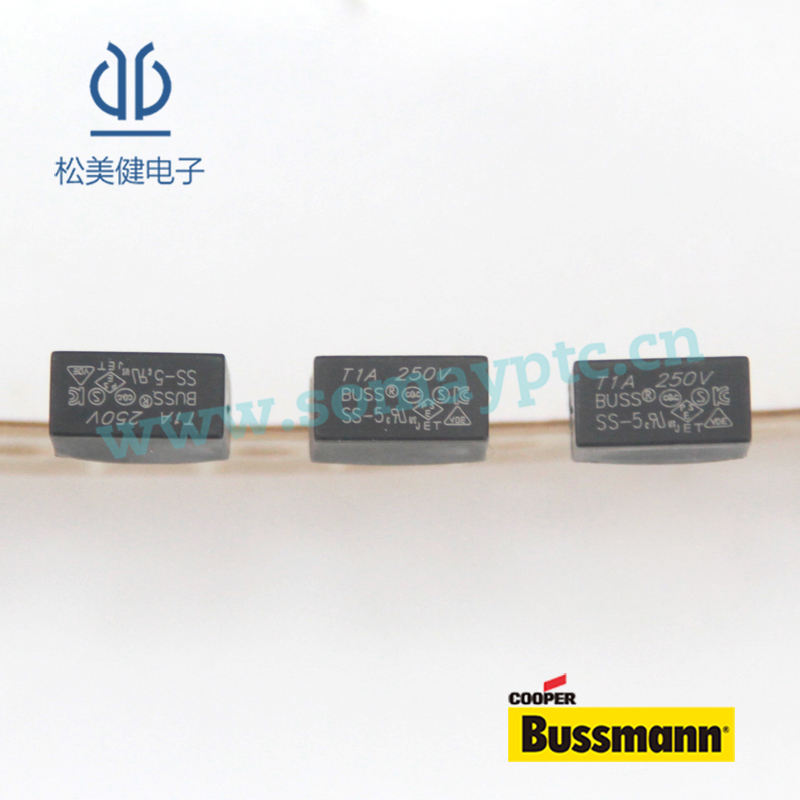

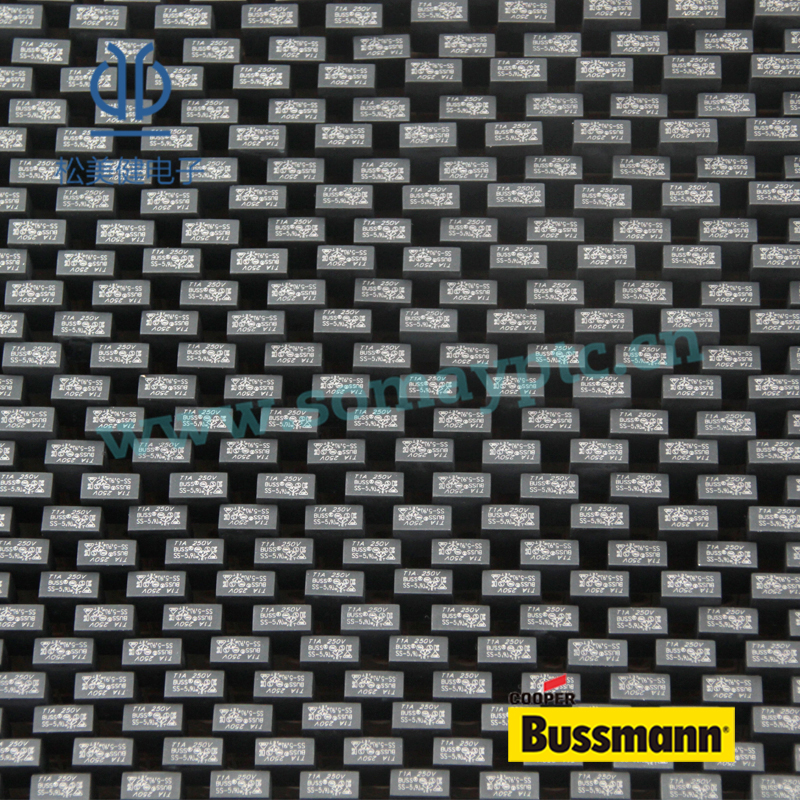

SS-5方形保险丝

产品简介：微型保险丝有别于传统的玻璃管式保险丝和汽车中的片型保险丝等，用于设备内部印制板和IC等的保护、输入输出电路的保护等，特点是体积小、不易破碎、自动化安装等，广泛应用数码相机、笔记本、手机等数码产品中。
实用范围：数码相机、笔记本、手机、电池充电器消费类电子产品电力供应工业控制器充电器等。

Catalog Number	Voltage Rating (Vac)	Interrupting Rating (amps) @ Rated Voltage (50Hz)	Typical DC Cold Resistance (mW)	Typical Melting I2t	Typical Voltage Drop@1In (mV)	Agency Approvals

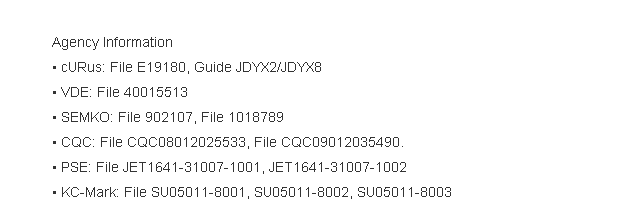

Catalog Number	Voltage Rating (Vac)	Interrupting Rating (amps) @ Rated Voltage (50Hz)	Typical DC Cold Resistance (mW)	Typical Melting I2t	Typical Voltage Drop@1In (mV)	VDE	SEMKO	CRU	CQC	KC	PSE
SS-5-400mA	250	35	330	1.67	147	×		×	×	×
SS-5-500mA	250	35	257.5	1.79	151.5	×	×	×	×	×
SS-5-630mA	250	35	140	1.51	100.5	×	×	×	×	×
SS-5-800mA	250	35	118	4.21	110.5	×	×	×	×	×
SS-5-1A	250	35	80.75	7.4	94.5	×	×	×	×	×	×
SS-5-1.25A	250	35	624	12.75	93.5	×	×	×	×	×	×
SS-5-1.6A	250	35	41	23	71.5	×	×	×	×	×	×
SS-5-2A	250	35	31.15	29.8	75	×	×	×	×	×	×
SS-5-2.5A	250	35	24.30	40.3	74.5	×	×	×	×	×	×
SS-5-3.15A	250	35	16.75	57	62.5	×	×	×	×	×	×
SS-5-4A	250	40	12.75	87	65.4	×	×	×	×	×	×
SS-5-5A	250	50	7.35	120	43	×	×	×	×	×	×
SS-5-6.3A	250	63	7.40	176	59	×	×	×	×	×	×
