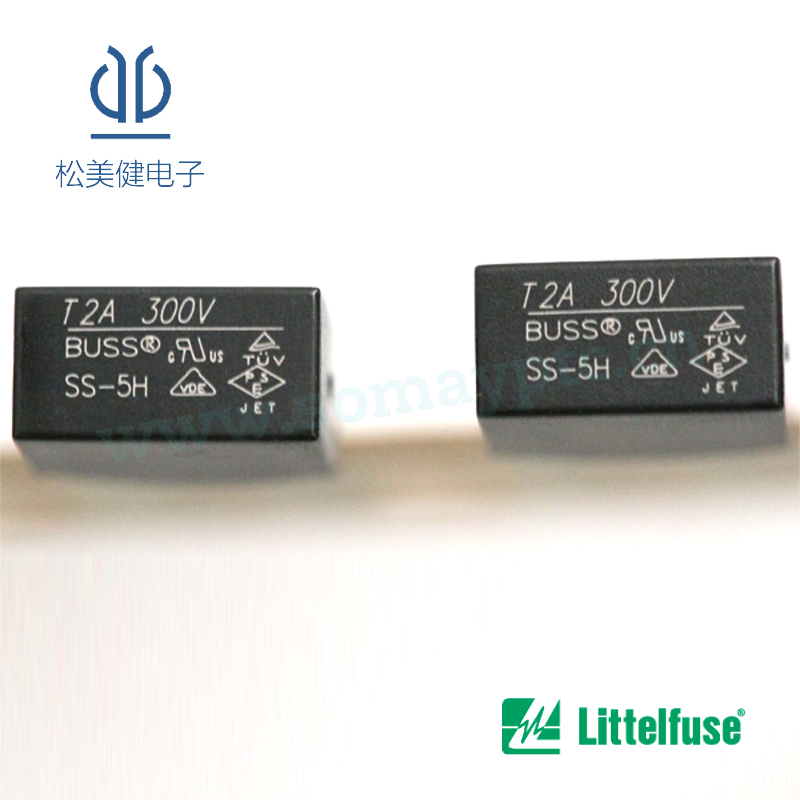

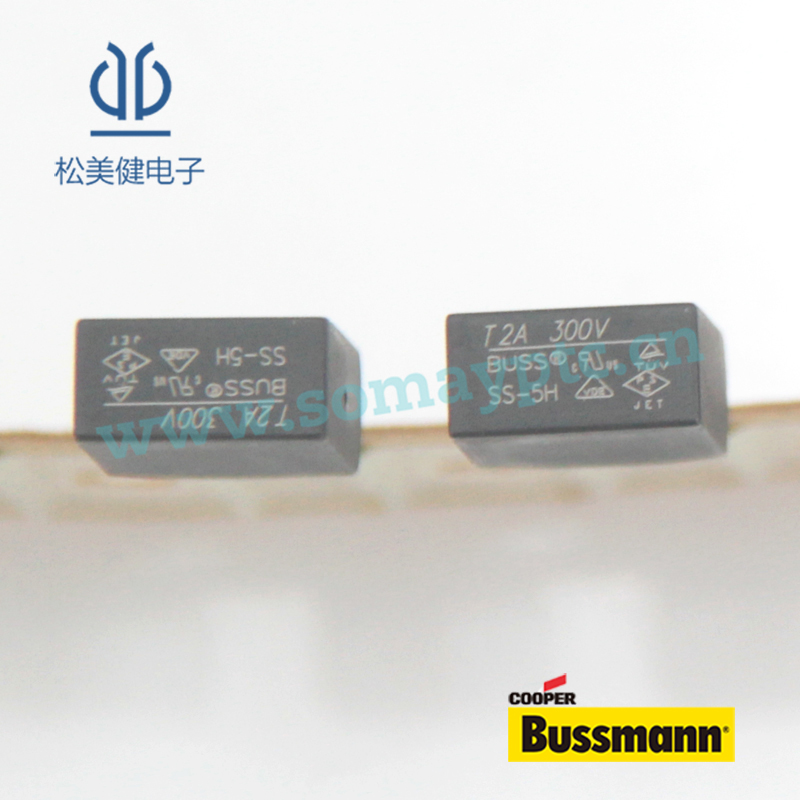

SS-5H方形保险丝

产品简介：SS-5H系列电压高达300V，bussmann 微型保险丝的其中一个系列，有别于传统的玻璃管式保险丝和汽车中的片型保险丝等，用于设备内部印制板和IC等的保护、输入输出电路的保护等，特点是体积小、不易破碎、自动化安装等
实用范围：数码相机、笔记本、手机、电池充电器消费类电子产品电力供应工业控制器充电器等。

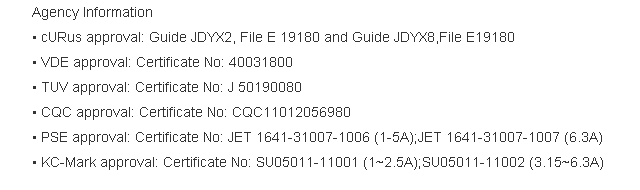

Catalog Number	Voltage Rating (Vac)	Interrupting Rating (amps) @ Rated Voltage (50Hz)	Typical DC Cold Resistance (mΩ)	Typical Melting I2t	Typical Voltage Drop@1In (mV)	Agency Approvals
Catalog Number	Voltage Rating (Vac)	Interrupting Rating (amps) @ Rated Voltage (50Hz)	Typical DC Cold Resistance (mΩ)	Typical Melting I2t	Typical Voltage Drop@1In (mV)	VDE	SEMKO	CRU	CQC	KC	PSE
SS-5H-1A	100	78	7.4	94.5	×	×	×	×	×	×	×
SS-5H-1.25A	100	57	12.75	93.5	×	×	×	×	×	×	×
SS-5H-1.6A	100	43	23	71.5	×	×	×	×	×	×	×
SS-5H-2A	100	31.15	29.8	75	×	×	×	×	×	×	×
SS-5H-2.5A	100	23	40.3	74.5	×	×	×	×	×	×	×
SS-5H-3.15A	100	17.5	67	62.5	×	×	×	×	×	×	×
SS-5H-4A	100	12	87	65.4	×	×	×	×	×	×	×
SS-5H-5A	100	7.35	120	43	×	×	×	×	×	×	×
SS-5H-6.3A	100	7.40	176	59	×	×	×	×	×	×	×
