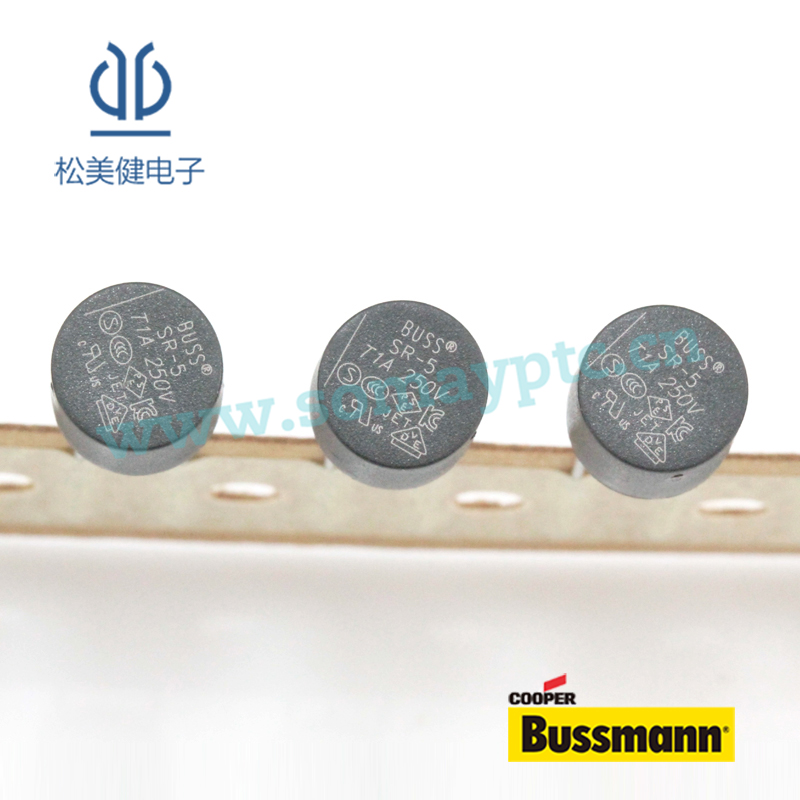

SR-5圆柱形保险丝

Part Number	Voltage Rating AC	Interrupting Rating (amps) @ Rated Voltage	Typical DC Cold Resistance (W)	Typical Melting I²t (@1mS)	Voltage Drop mV @ 20℃ Rated Current	Agency Information

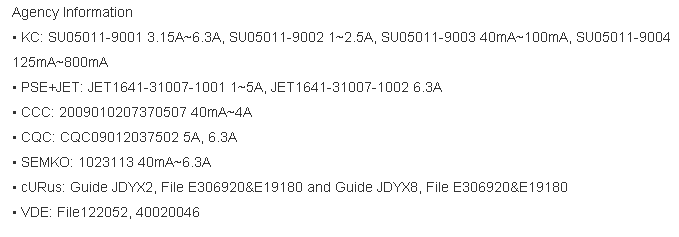

Part Number	Voltage Rating AC	Interrupting Rating (amps) @ Rated Voltage	Typical DC Cold Resistance (W)	Typical Melting I²t (@1mS)	Voltage Drop mV @ 20℃ Rated Current	VDE	SEMKO	UR	CCC	EK-MARK	PSE
SR-5-40MA	250	35	11.5	0.001988	524	×	×	×	×	×
SR-5-50MA	250	35	8	0.003664	462	×	×	×	×	×
SR-5-63MA	250	35	5.36	0.006979	383.5	×	×	×	×	×
SR-5-80MA	250	35	3.43	0.010814	331	×	×	×	×	×
SR-5-100MA	250	35	2.37	0.015155	288.5	×	×	×	×	×
SR-5-125MA	250	35	1.6	0.026783	238	×	×	×	×	×
SR-5-160MA	250	35	1.02	0.039097	196.5	×	×	×	×	×
SR-5-200MA	250	35	0.94	0.168832	215.5	×	×	×	×	×
SR-5-250MA	250	35	0.66	0.24778	185	×	×	×	×	×
SR-5-315MA	250	35	0.43	0.2772	152	×	×	×	×	×
SR-5-400MA	250	35	0.285	0.771618	127	×	×	×	×	×
SR-5-500MA	250	35	0.24	2	143.2	×	×	×	×	×
SR-5-630MA	250	35	0.153	3.5	113	×	×	×	×	×
SR-5-800MA	250	35	0.107	6.5	104.5	×	×	×	×	×
SR-5-1A	250	35	0.083	7.5	98.8	×	×	×	×	×	×
SR-5-1.25A	250	35	0.061	13	96.2	×	×	×	×	×	×
SR-5-1.6A	250	35	0.043	24	84.4	×	×	×	×	×	×
SR-5-2A	250	35	0.031	30	79.7	×	×	×	×	×	×
SR-5-2.5A	250	35	0.028	45	75.8	×	×	×	×	×	×
SR-5-3.15A	250	35	0.017	57	69.4	×	×	×	×	×	×
SR-5-4A	250	40	0.015	80	72.8	×	×	×	×	×	×
SR-5-5A	250	50	0.010	95.4	61.1	×	×	×	CQC	×	×
SR-5-6.3A	250	63	0.008	200	62.2	×	×	×	CQC	×	×
