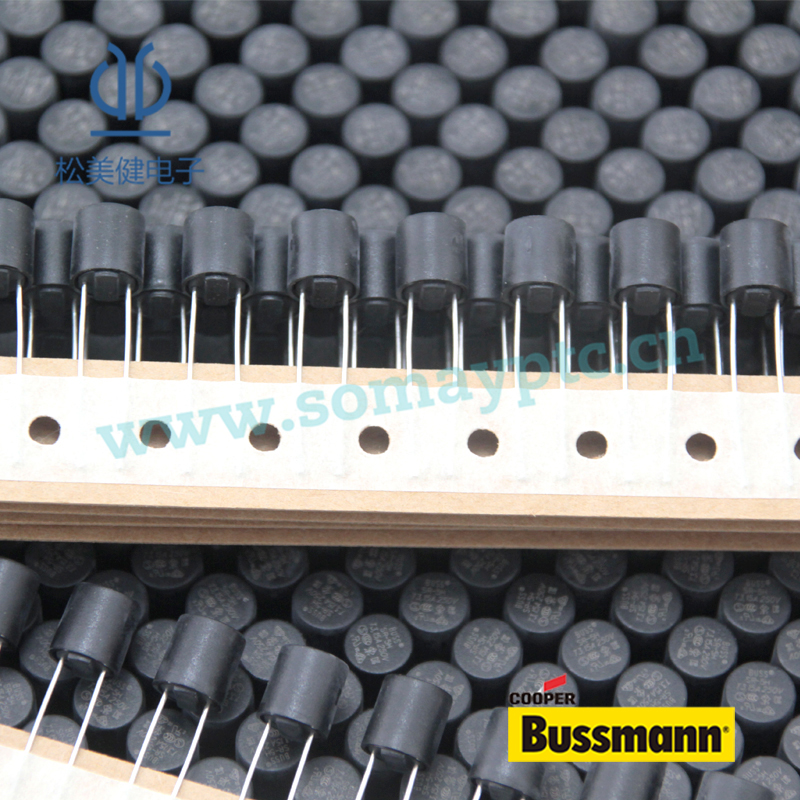

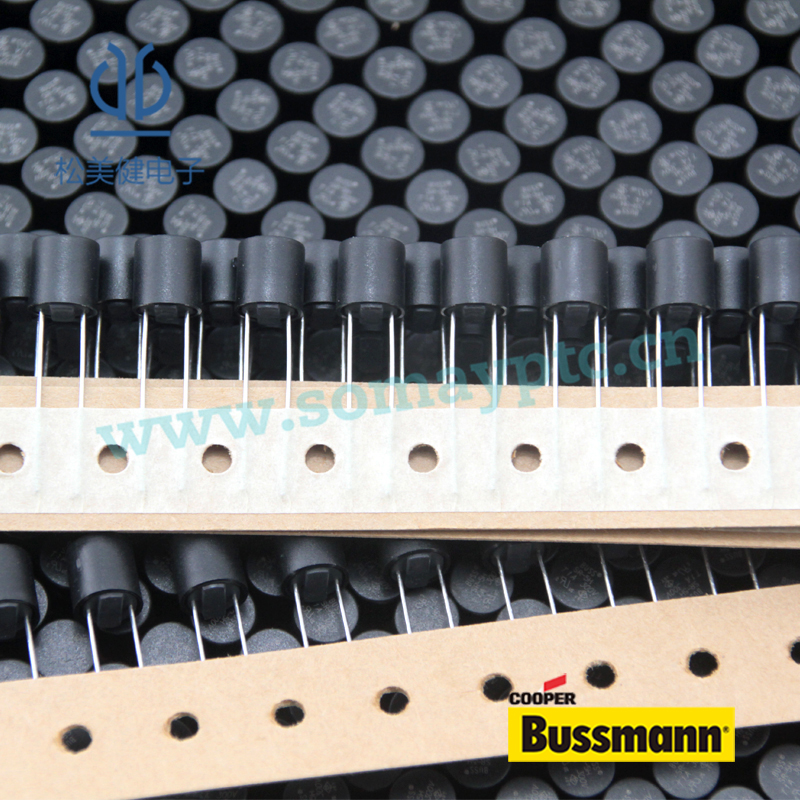

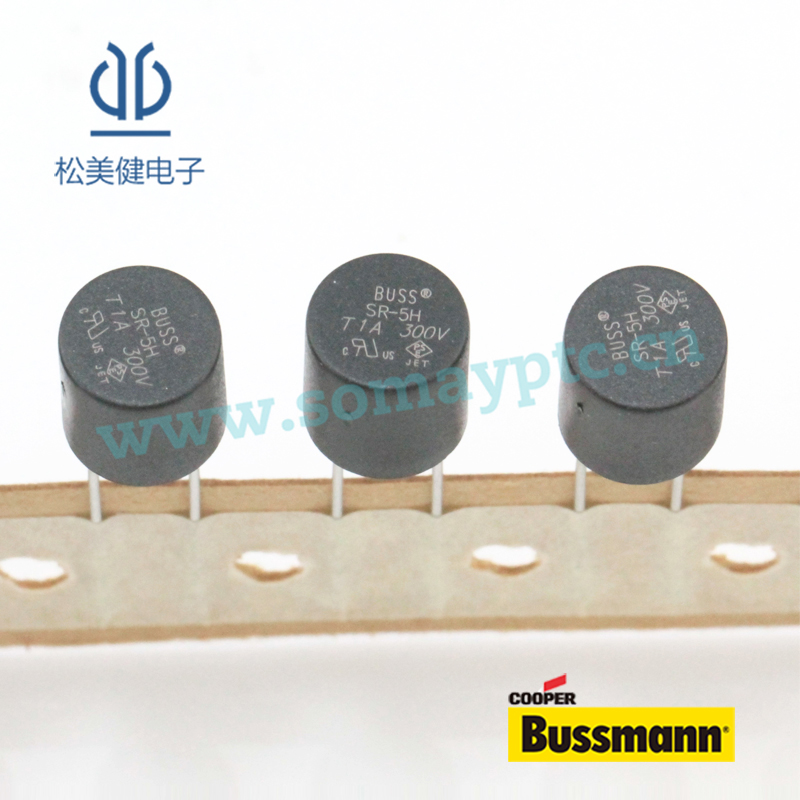

SR-5H圆柱形保险丝

产品简介：SR-5H 电压可达300V，延迟性保险丝，无铅 100安培分断能力降低对PCB板的空间要求可直接软焊或插入获国际认证低内阻防电击外壳抗振无卤素
实用范围：数码相机、笔记本、手机、电池充电器消费类电子产品电力供应工业控制器充电器等。

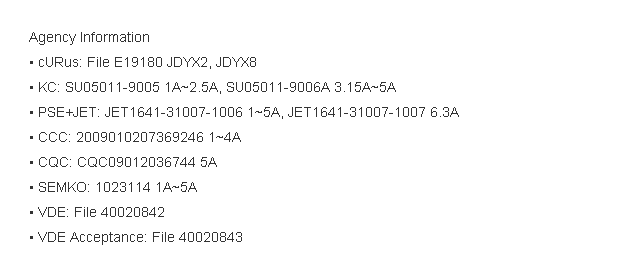

Part Number	Voltage Rating AC	Interrupting Rating (amps) @ Rated Voltage	Typical DC Cold Resistance (W)	Typical Melting I²t (@1mS)	Voltage Drop mV @ 20℃ Rated Current	Agency Information
Part Number	Voltage Rating AC	Interrupting Rating (amps) @ Rated Voltage	Typical DC Cold Resistance (W)	Typical Melting I²t (@1mS)	Voltage Drop mV @ 20℃ Rated Current	VDE	SEMKO	UR	CCC	EK-MARK	PSE
SR-5H-400MA	300	100	0.285	0.771618	127			×
SR-5H-500MA	300	100	0.24	2	143			×
SR-5H-630MA	300	100	0.162	3.5	120			×
SR-5H-800MA	300	100	0.113	6.5	107			×
SR-5H-1A	300	100	0.081	7.5	93	×	×	×	×	×	×
SR-5H-1.25A	300	100	0.06	13	88	×	×	×	×	×	×
SR-5H-1.6A	300	100	0.043	24	85	×	×	×	×	×	×
SR-5H-2A	300	100	0.031	30	74	×	×	×	×	×	×
SR-5H-2.5A	300	100	0.025	45	75	×	×	×	×	×	×
SR-5H-3.15A	300	100	0.018	57	73	×	×	×	×	×	×
SR-5H-4A	300	100	0.013	80	65	×	×	×	×	×	×
SR-5H-5A	300	100	0.007	115	45	×	×	×	×	×	×
