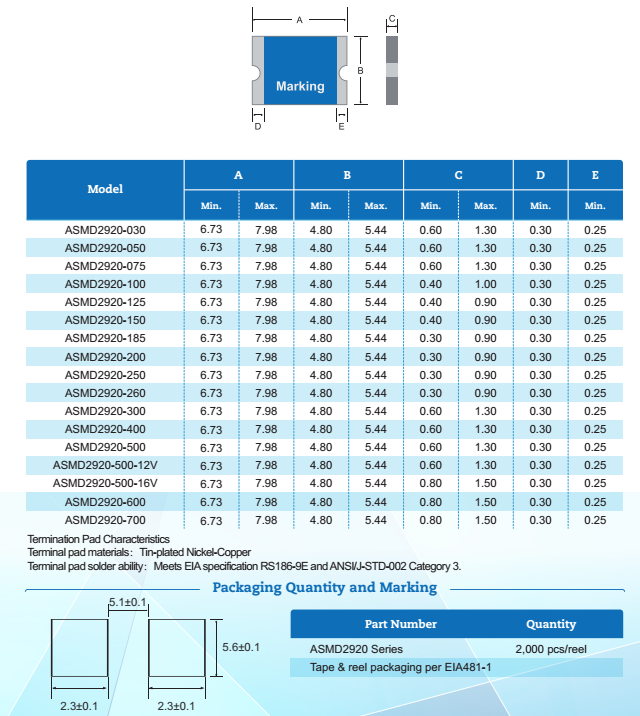

Model
|
Vmax
(Vdc) |
Imax
(A) |
Ihold
@25℃ (A) |
Itrip
@25℃ (A) |
Pd
typ. (W) |
Maximum Time
To Trip |
Resistance
|
||
|
Current
(A) |
Time
(Sec.) |
Rimin
(Ω) |
R1max
(Ω) |
||||||
|
ASMD2920-030
|
60
|
100
|
0.30
|
0.60
|
1.5
|
1.5
|
3.0
|
0.600
|
4.800
|
|

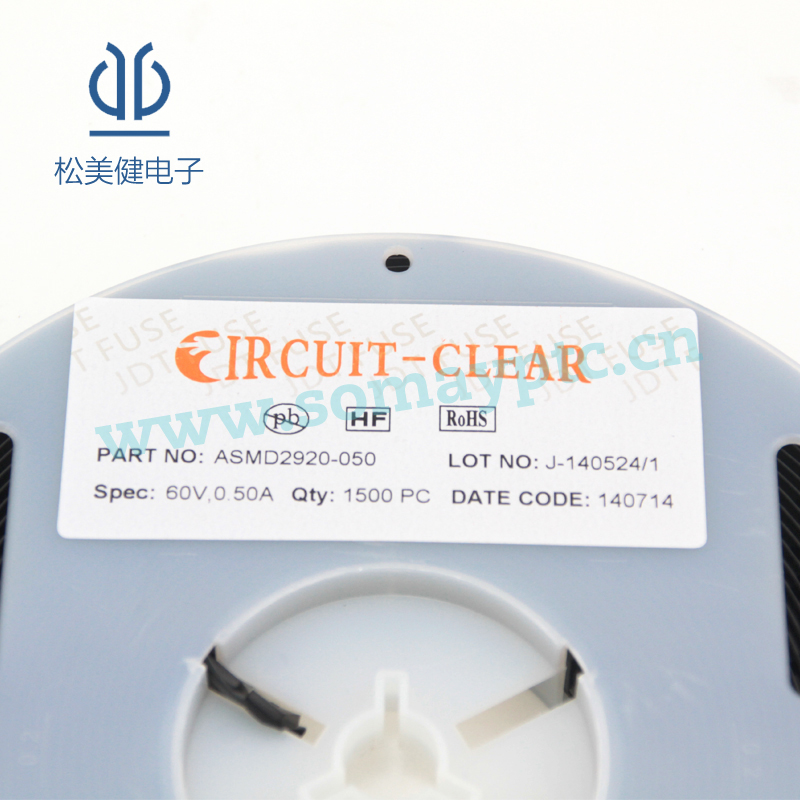

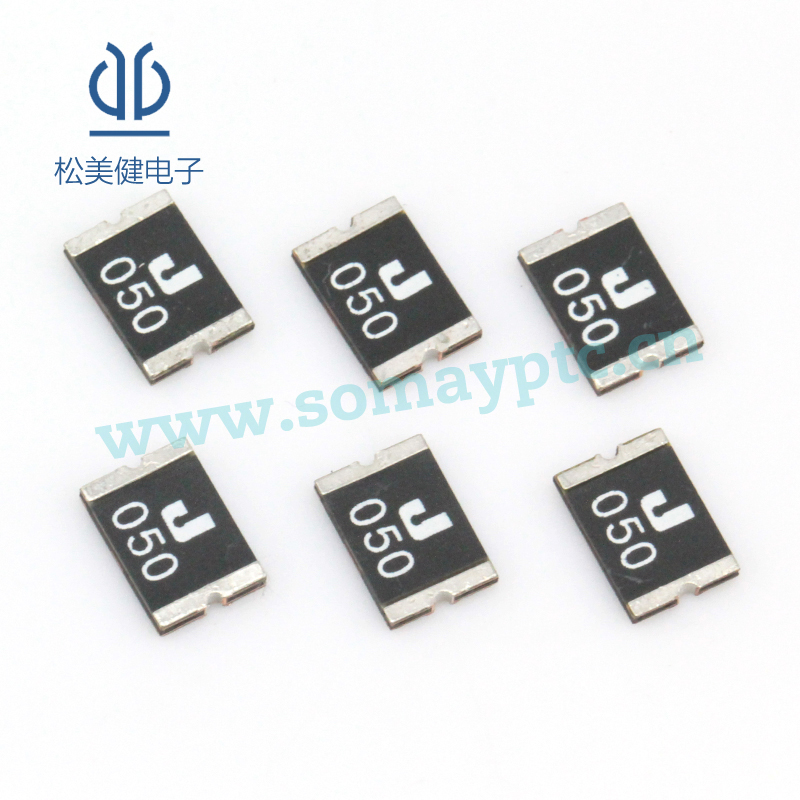

ASMD2920-050
|
60
|
100
|
0.50
|
1.00
|
1.5
|
2.5
|
4.0
|
0.180
|
1.400
|
|
ASMD2920-075
|
33
|
100
|
0.75
|
1.50
|
1.5
|
8.0
|
0.3
|
0.100
|
1.000
|
|
ASMD2920-100
|
33
|
100
|
1.00
|
2.00
|
1.5
|
8.0
|
0.5
|
0.065
|
0.410
|
|
ASMD2920-110
|
33
|
100
|
1.10
|
2.20
|
1.5
|
8.0
|
0.5
|
0.065
|
0.410
|
|
ASMD2920-125
|
33
|
100
|
1.25
|
2.50
|
1.5
|
8.0
|
2.0
|
0.050
|
0.250
|
|
ASMD2920-150
|
33
|
100
|
1.50
|
3.00
|
1.5
|
8.0
|
2.0
|
0.035
|
0.230
|
|

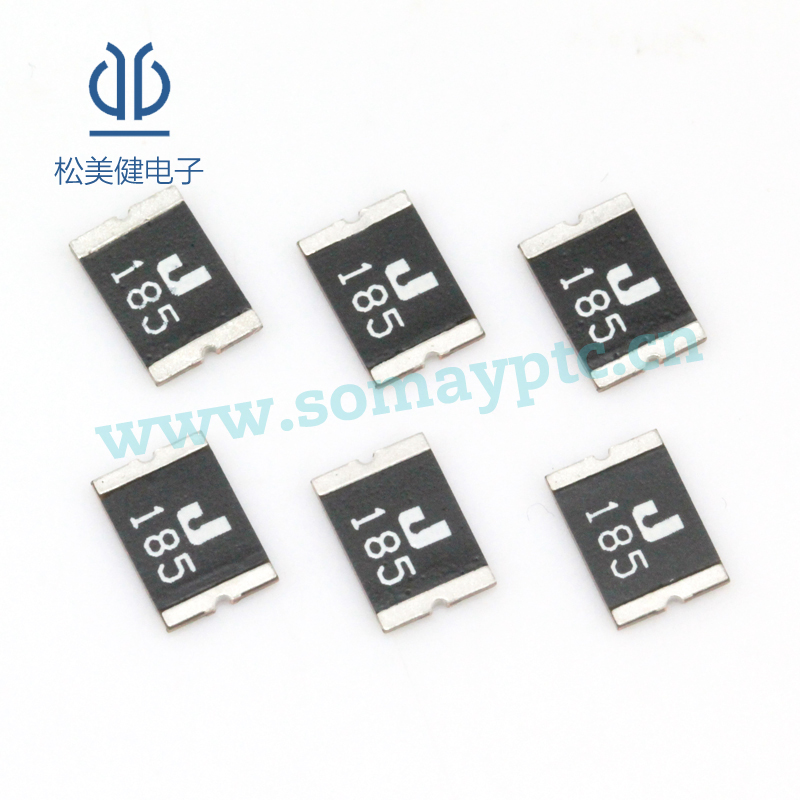

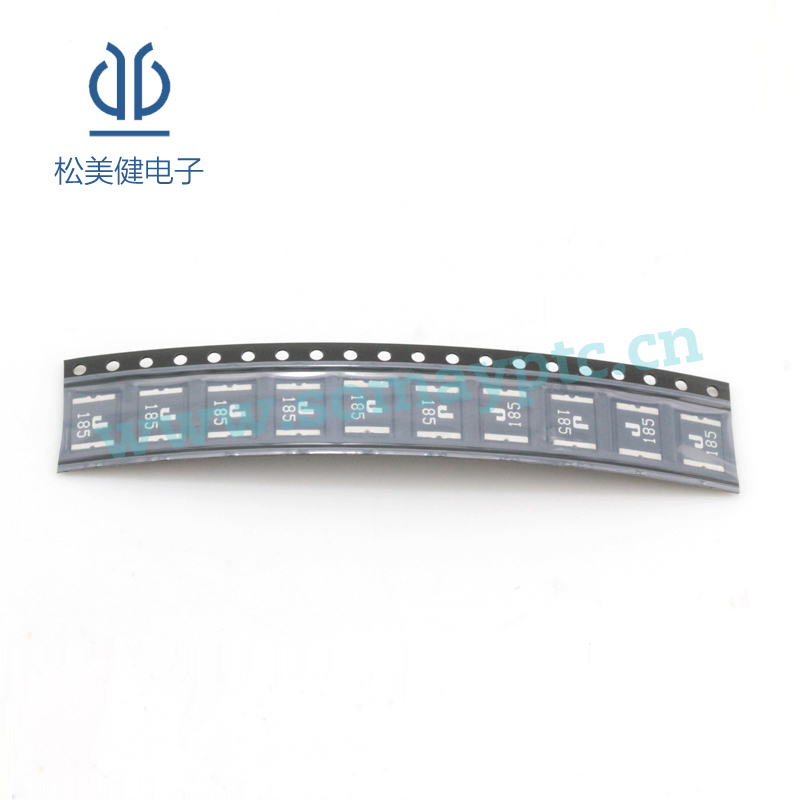

ASMD2920-185
|
33
|
100
|
1.85
|
3.70
|
1.5
|
8.0
|
2.5
|
0.030
|
0.150
|
|
ASMD2920-200/24
|
24
|
100
|
2.00
|
4.00
|
1.5
|
8.0
|
4.5
|
0.00
|
0.120
|
|
ASMD2920-250
|
16
|
100
|
2.50
|
5.00
|
1.5
|
8.0
|
1.60
|
0.020
|
0.085
|
|
ASMD2920-260
|
6
|
100
|
2.60
|
5.20
|
1.5
|
8.0
|
10.0
|
0.014
|
0.075
|
|
ASMD2920-300
|
6
|
100
|
3.00
|
6.00
|
1.5
|
8.0
|
20.0
|
0.012
|
0.048
|
|
ASMD2920-300/16
|
16
|
100
|
3.00
|
6.00
|
1.5
|
8.0
|
20.0
|
0.012
|
0.048
|

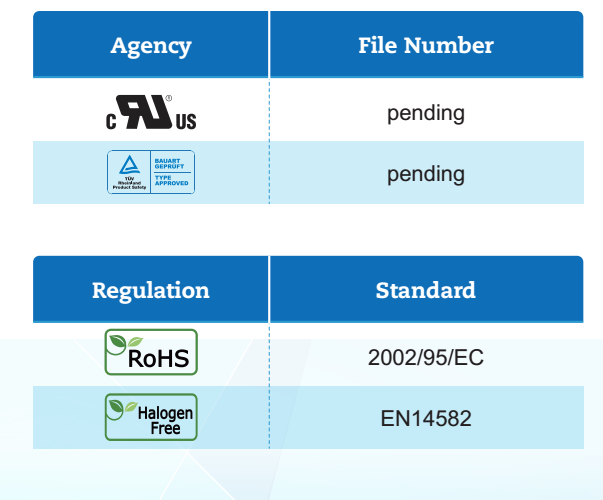

Vmax=元件在額定電流下能承受的最大電壓.
Imax=元件在額定電壓下能承受的最大電流.
Ihold=在25℃靜止空氣環境中,產品不動作的最大電流.
Itrip=在25℃靜止空氣環境中,最小動作電流.
Pd=在25℃靜止空氣環境中,產品動作狀態下的消耗功率.
Rimin/max=25℃溫度條件下的初始阻值(焊接前).
R1max=25℃溫度條件下,焊接一小時後的最大阻值.
注意:超出指定額定值的操作，可能會導致損傷和可能產生電弧和火焰.
