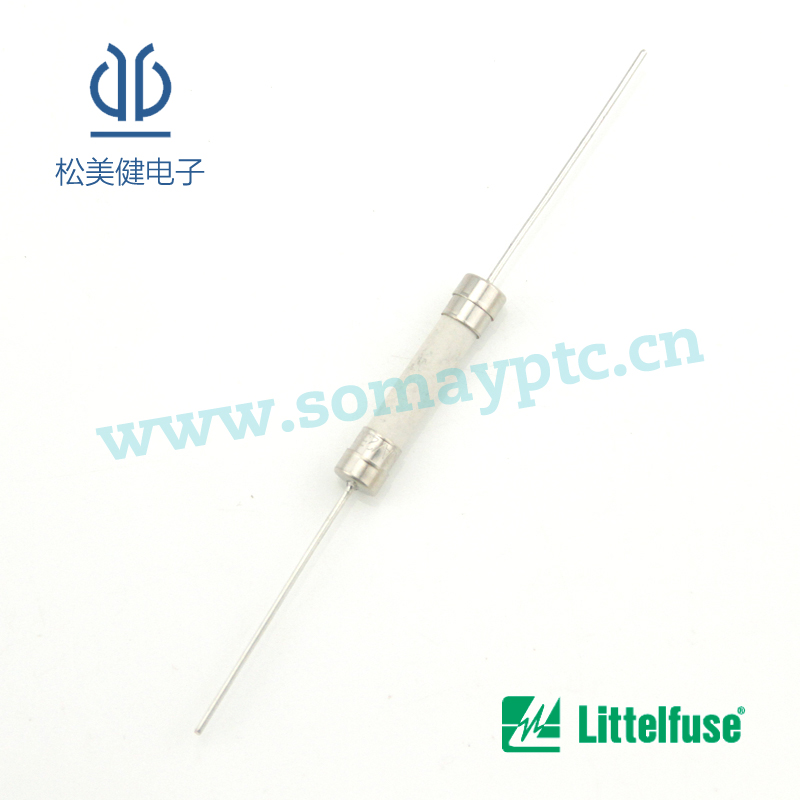

0324系列保险丝

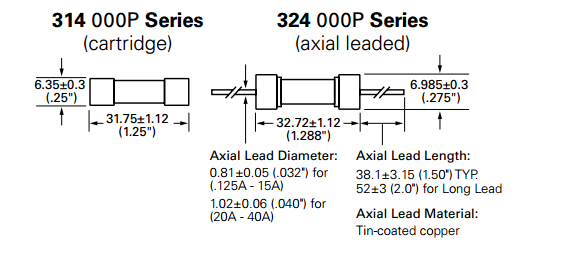

产品简介：3AB快熔型陶瓷管体建筑用保险丝可承受更高的断流额定值和额定电压。非常适合存在高电流负载的应用。功能与特色: 符合UL标准248-14 可提供各种外形尺寸的管式或轴向引线型号无铅产品，且符合RoHS标准
实用范围：在设备或作为补充保护利用设备提供个人保护组件或内部电路。

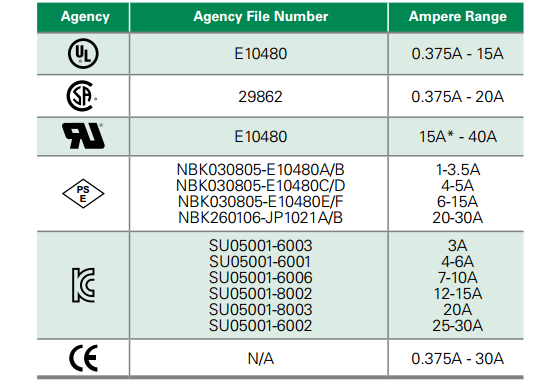

Amp Code	Ampere Rating (A)	Voltage Rating? (V)	Interrupting Rating	Nominal Cold Resistance? (Ohms)	Nominal melting I2t(A2sec)	Agency?Approvals
Amp Code	Ampere Rating (A)	Voltage Rating? (V)	Interrupting Rating	Nominal Cold Resistance? (Ohms)	Nominal melting I2t(A2sec)	UL	CSA	KC	UR	PSE	CE
0324.375	0.375	250	35A@250VAC 10KA@125VAC 10KA@125VDC	0.820	0.050	×	×				×
0324.500	0.5	250		0.500	0.115	×	×				×
0324.750	0.375	250		0.250	0.466	×	×				×
0324001.	1	250	100A@250VAC 10KA@125VAC 10KA@125VDC	0.189	0.69	×	×			×	×
0324002.	2	250		0.0700	11.0	×	×			×	×
0324003.	3	250		0.0432	14.6	×	×	×		×	×
0324004.	4	250	750A@250VAC 10KA@125VAC 10KA@125VDC	0.0470	10.4	×	×	×		×	×
0324005.	5	250		0.0300	26.0	×	×	×		×	×
0324006.	6	250		0.0240	45.0	×	×	×		×	×
0324007.	7	250		0.0187	71.0	×	×	×		×	×
0234008.	8	250		0.0153	105	×	×	×		×	×

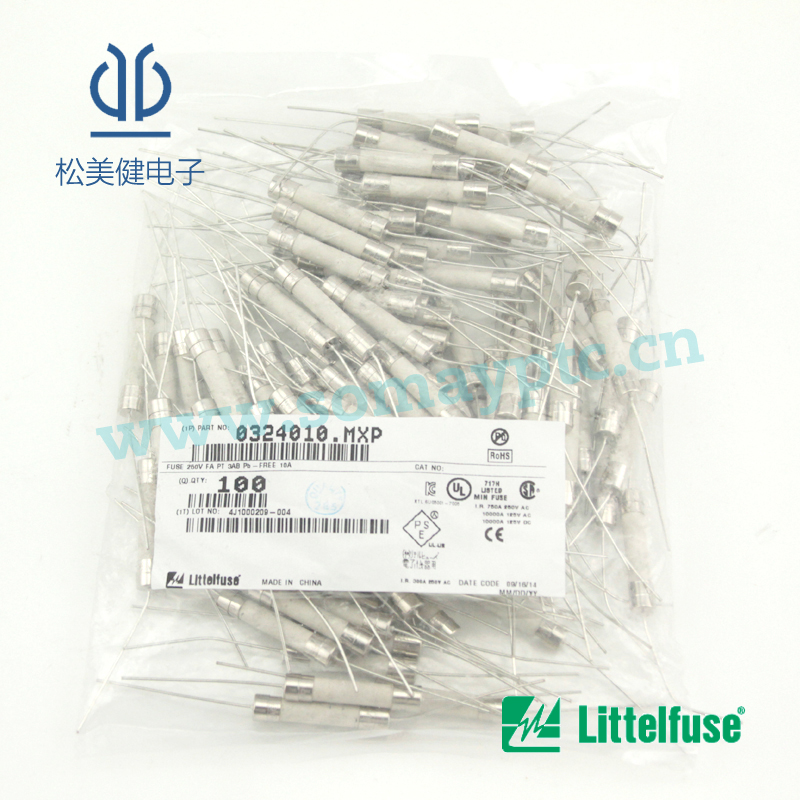

0324010.	10	250		0.0105	206	×	×	×		×	×
0324012.	12	250		0.00760	570	×	×	×		×	×
0324015.	15	250		0.00505	292	×	×	×	×	×	×

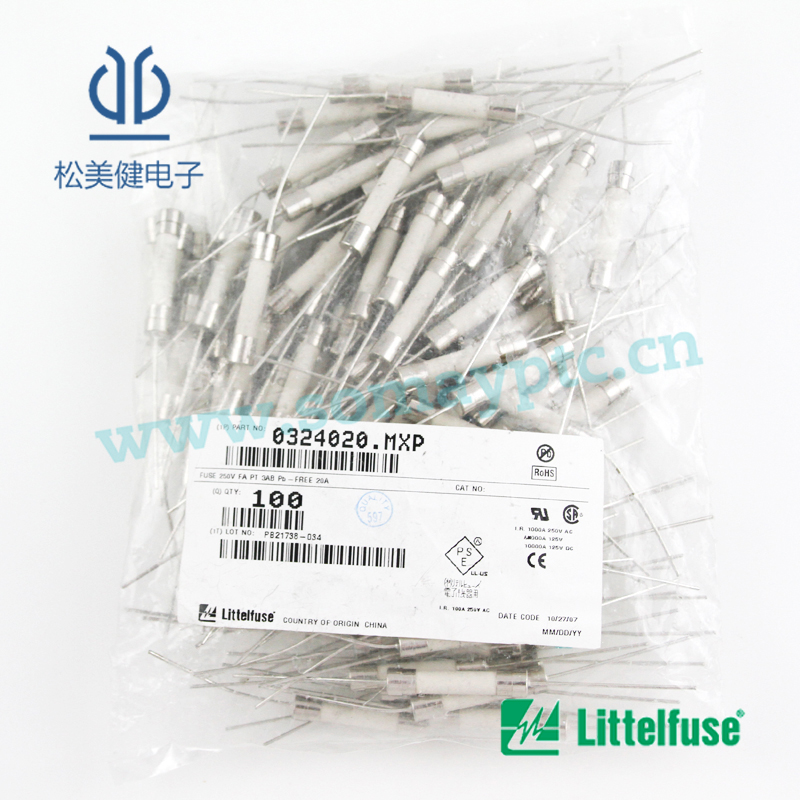

0324020.	20	250	1000A@250VAC 200A@300VAC 10KA@125VAC/DC	0.00355	631		×	×	×	×	×
0324025.	25	250	100A@250VAC 1000A@75VDC 400A@125VAC/DC	0.00235	1450			×	×	×	×

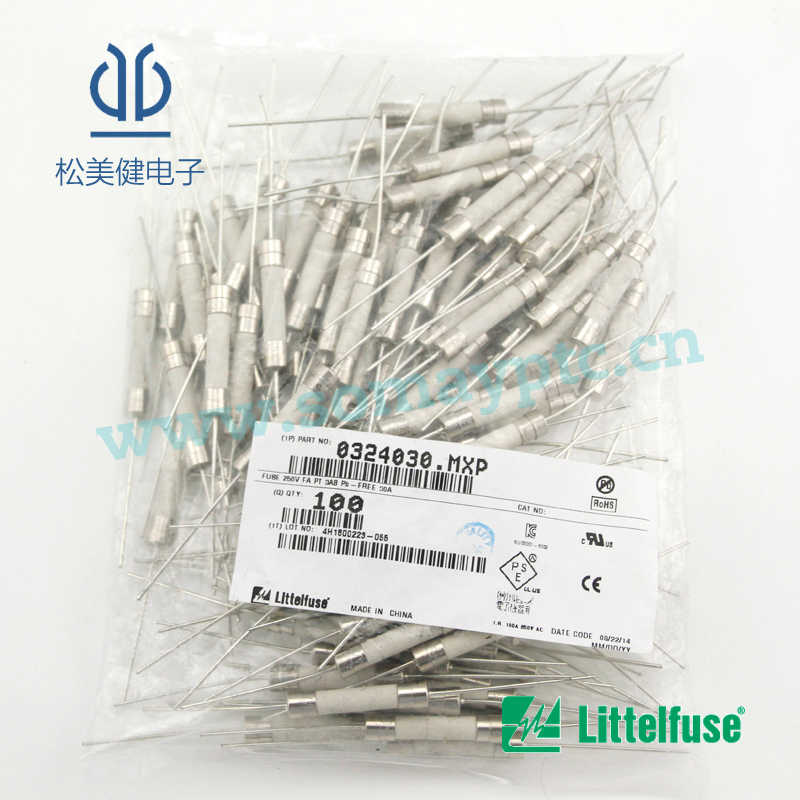

0324030.	30	250	100A@250VAC 1000A@75VDC 400A@125VAC/DC	0.00182	2490			×	×	×	×
0324040.	40	250	1000A@250VAC 400A@150VDC	0.0014	22925				×		×
